Italy original authentic GEFRAN displacement sensor PK-M-0350

Product features:

• 1, displacement travel from 100~2000mm
• 2, using M5 screw teeth for connection
• 3, linear accuracy is positive and negative 0.05% full scale
• 4, the reproducibility of 0.01mm
• 5, unlimited resolution
• 6, not by external noise interference
• 7, displacement speed of up to 5m/s (optional 10m/s)
• 8, the protection level is IP40
• 9, the working temperature is -30~+100 degrees C
• 10, the service life of <25 million meters or <100 million times

Product specifications:

• 1. 130/ 100/ 150/ 225/ 200/ 275/ 175/ 300/ 375/ 400/ 500/ 600/ 450/ 750/ 900/ 1000/ 1250/ 1500/ 1750/ 2000
• 2, displacement force <1.2N
• 3, vibration 5~2000Hz, the maximum amplitude of 0.75mm (20g)
• 4, vibration 11ms, =50g
• 5, the operation of <200m/s (20g) - acceleration
• 6, the impedance tolerance is plus or minus 20%
• 7, cursor current A mu <0.1
• 8, the maximum current <10mA
• 9, the maximum allowable voltage <60V
• 10, insulation impedance >100M (500V, 1Bar, 2S)
• 11, insulation strength of <100 A (500V, 1Bar, 2S, 50Hz)
• 12, power consumption =3W
• 13, each of <1.5ppm/ ~ C ~ C drift
• 14, storage temperature is -50~+120 degrees C

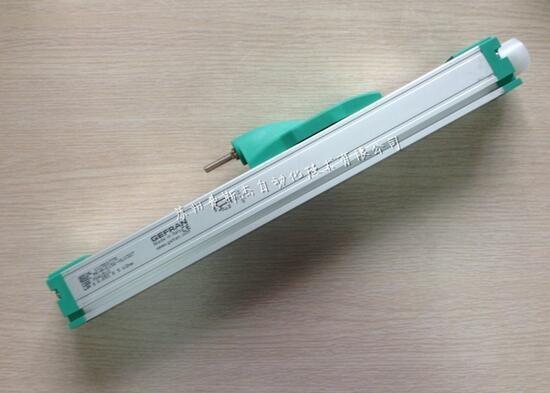

Italy original authentic GEFRAN displacement sensor PK-M-0350 Images
